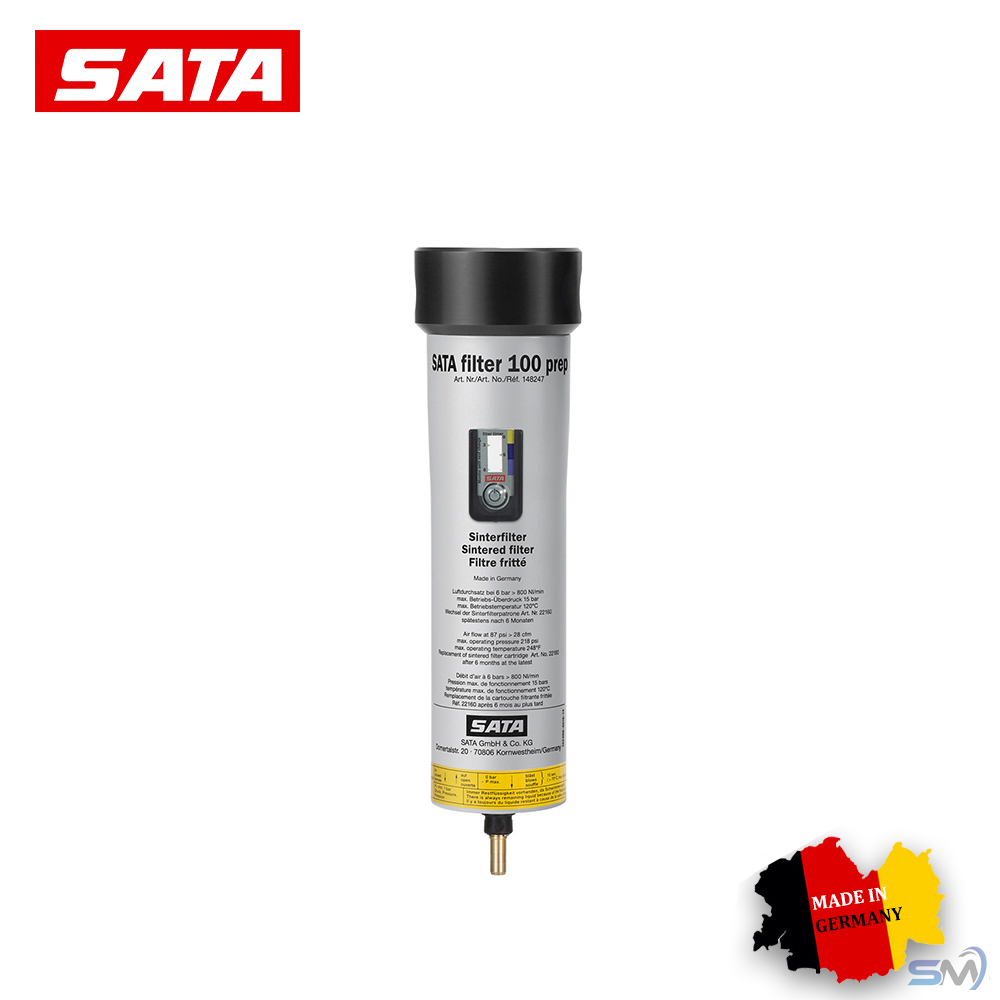

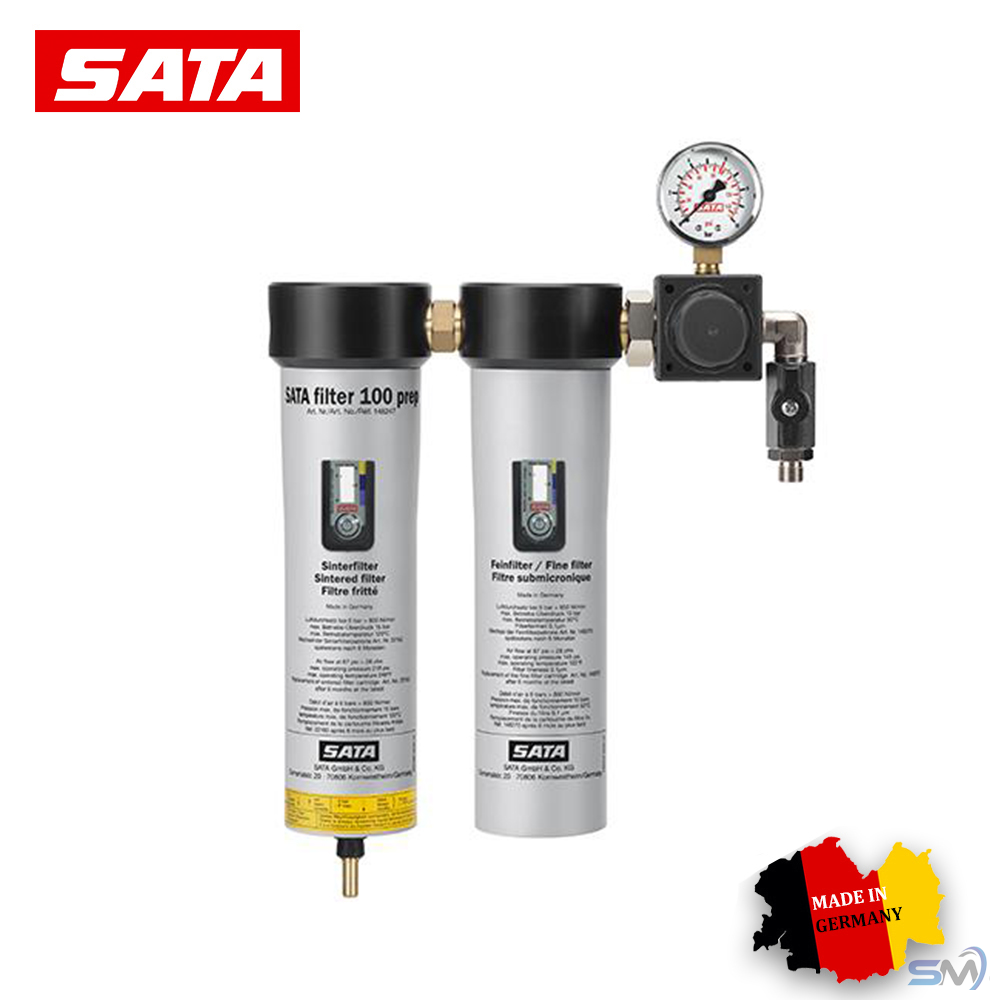

The SATA filters 100 prep and 103 prep have been specially developed for the requirements at the pre-working place. By using them, paint failures can be avoided right from the start. Not suitable for use in paint booths.
Product Benefits
- Finest particles are separated down to a size of 0.1 µm
- The first filter stage with large cyclone separator and sinter filter reliably removes oil droplets, condensate and suspended particles from the compressed air.
- The second filter stage, the microfiber fine filter, separates fine particles down to a size of 0.1 µm
- The third filter stage with activated charcoal provides the highest level of safety when processing waterborne primer materials.
- The automatic condensate drain of the 1st filter stage keeps the service effort low and increases the operational reliability
- Pressure regulator valve with gauge for precise adjustment of the outlet pressure
- Ideal for the work preparation area with temperatures < 50 ° C
- Air flow rate 800 Nl/min at 6 bar inlet pressure.
Suitable areas of application
- Car Refinish
- Industrial Applications
- Carpentry
- Decorative Painting
- Yacht and Boat Building
- Airbrush and Design
-
Packaging unit
1,0 Pieces
Net weight
1,733 - 4,848 kg
Max. inlet air pressure
10,0 bar
Max. air outlet pressure
10,0 bar
Number of filter stages
1 - 3
Max. air flow
800 Nl/min
Max. ambient temperature
+50 °C
Exchange interval first filter stage
6 Months
Exchange interval second filter stage
6 Months
Exchange interval third filter stage
3 Months
